Squash Corso 2
Overview

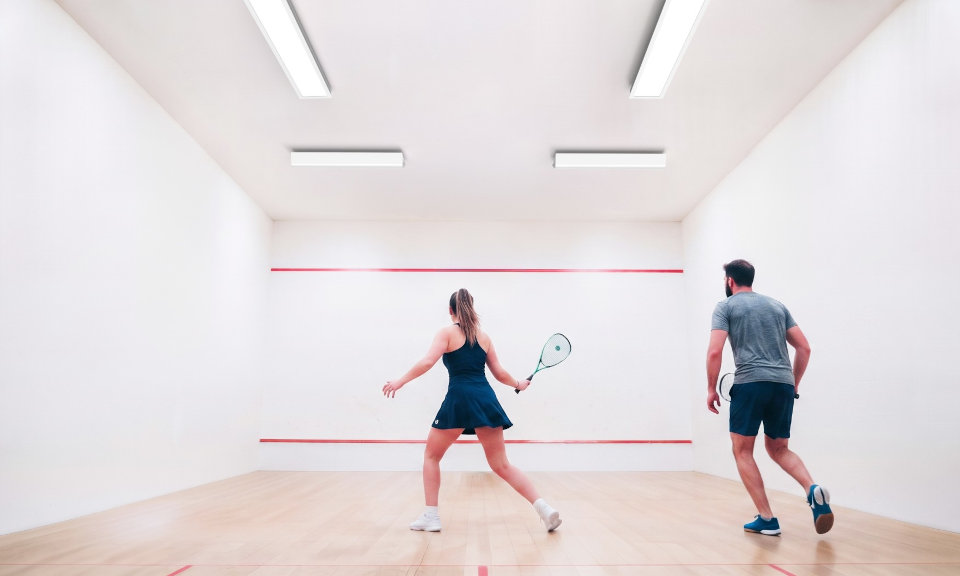

Squash Corso 2 has been designed for use in squash courts. Developed with a new shallow body, the Squash Corso 2 will help sports centres, schools and universities to increase participation and enjoyment levels when playing sports in these environments.
Elevate your tennis and squash and multi-purpose sports facilities with the Corso 2 family ranges, a cutting-edge sports lighting solution engineered to deliver unmatched performance, durability, and style. Purpose-built for demanding indoor environments, Corso 2 integrates the latest generation of high-efficiency LED technology to provide outstanding clarity, uniformity, and visual comfort. Players benefit from crisp, consistent illumination that enhances reaction times, reduces glare, and supports peak performance during every serve, rally, and return.
The Squash Corso 2 range brings a refined, contemporary aesthetic to any sporting space. Its sleek profile, versatile mounting options, and choice of colours allow it to complement both new builds and refurbishment projects effortlessly. With a design focused on long-term reliability and minimal maintenance, the Corso 2 family ensures that sports facilities can enjoy premium LED lighting with confidence and ease.
Features
- Utilises state-of-the-art Philips Fortimo LED modules with efficacy of up to 122 llm/W
- Designed in conjunction with England Squash specifically for squash courts
- Meets CIBSE LG4 (Sports) recommendations
- Easy access cover and installation onto angled brackets
- Surface or suspension mounting for any installation requirements
- Excellent colour rendition (minimum CRI 80 rated LEDs)
- 4000 K LEDs as standard. Other colour temperatures available on request
- LED optimised opal polycarbonate diffuser
- Dimmable option may be linked to daylight control
- Integral emergency versions available
- LiFePO4 cell technology

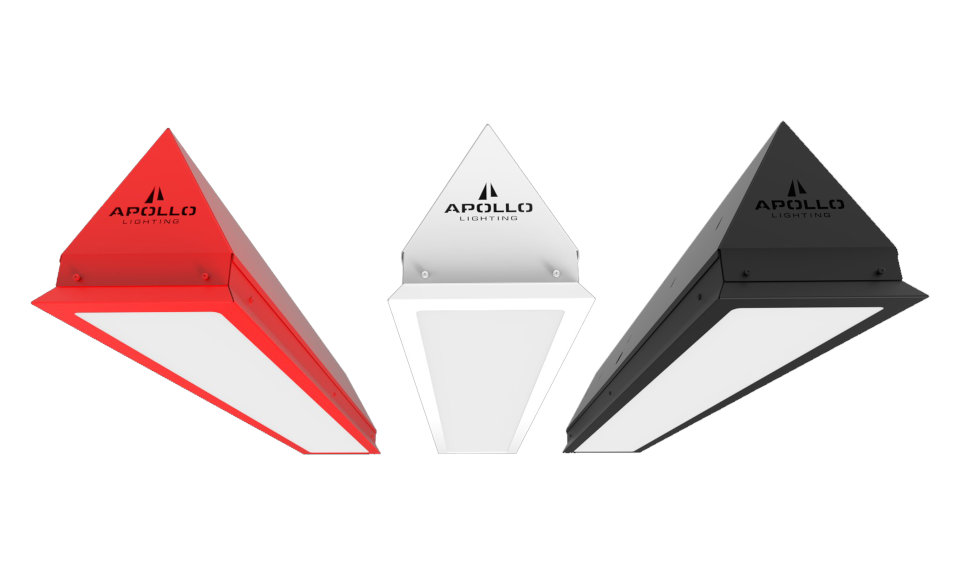

- White as standard, available in black or other colours upon request
Applications
The Squash Corso 2 range is particularly suited for use in the following applications and environments.
- Education
- Leisure
- Sports

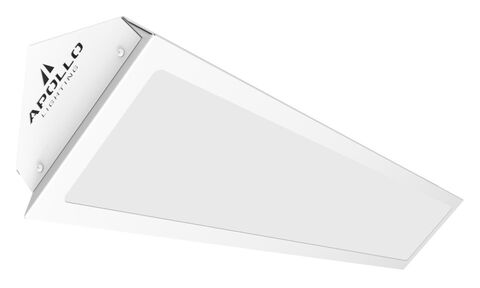

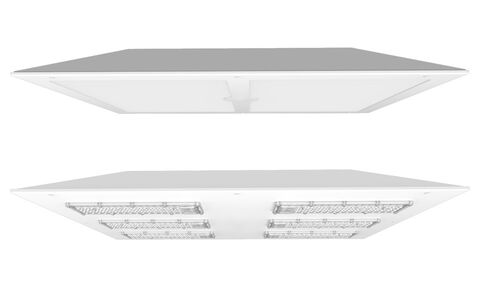

The Corso 2 Family
Materials and Finishes
| Body | 1.2 mm Zintec Steel |
| Controller | TP(a) LED optimised opal polycarbonate diffuser |
| Finish | White |
Lifetime Data
| Model | L90/B10 | L80/B10 | L70/B10 |
|---|---|---|---|
| Squash Corso 2 | 90 000 h | >100 000 h | >100 000 h |
All lifetime performance data is taken at +25 °C ambient.
- L Value
- % of initial lumens maintained after the specified time.
- B Value
- % of luminaires failing to meet operational expectations after the specified time.
Example
- L80/B10
80 % of initial lumens maintained after >100 000 h, 10 % of luminaires will have less than 80 % of initial lumens after >100 000 h.
Alternatively, 90 % of luminaires will have maintained 80 % of initial lumens after >100 000 h.
Example Layout Isolux Plot
Example Contour Plot for a Single Court with Solid Walls
| Area | 9.75 m x 6.40 m x 6.00 m |
| RSMF | 0.85 |
| Reflectances | 70/70/30 |
| Ave | 622 lux |
| Min/Ave | 0.84 |
Photometric Data
CSS60
| DLOR | 0.762 |
| ULOR | 0.238 |
| Lumen Output | 8143 llm |
CSSSUR
| Lumen Output | 15271 llm |
| SHR NOM | 1.5 |
| SHR MAX | 1.590 |
| SHR MAX TRANS | 1.768 |
Product Dimensions

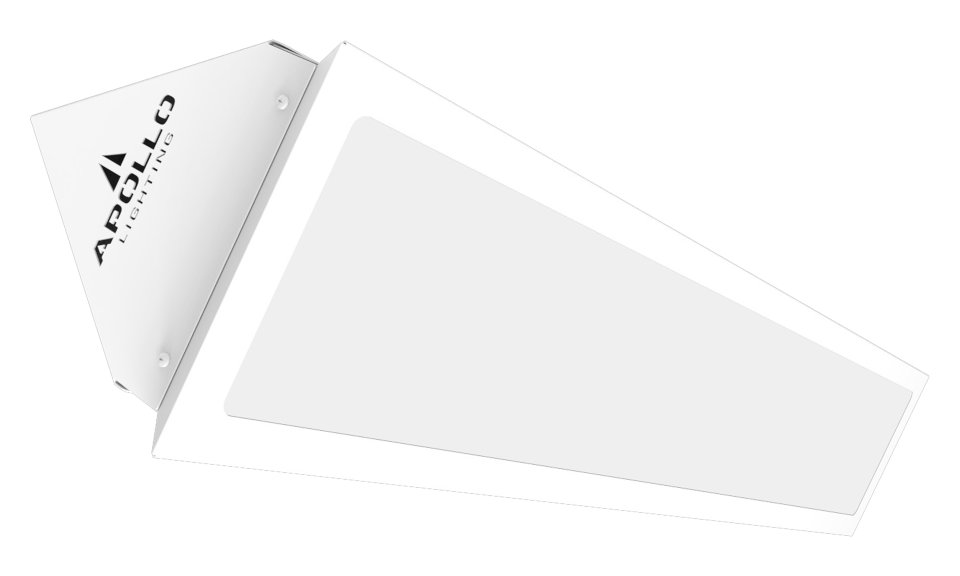

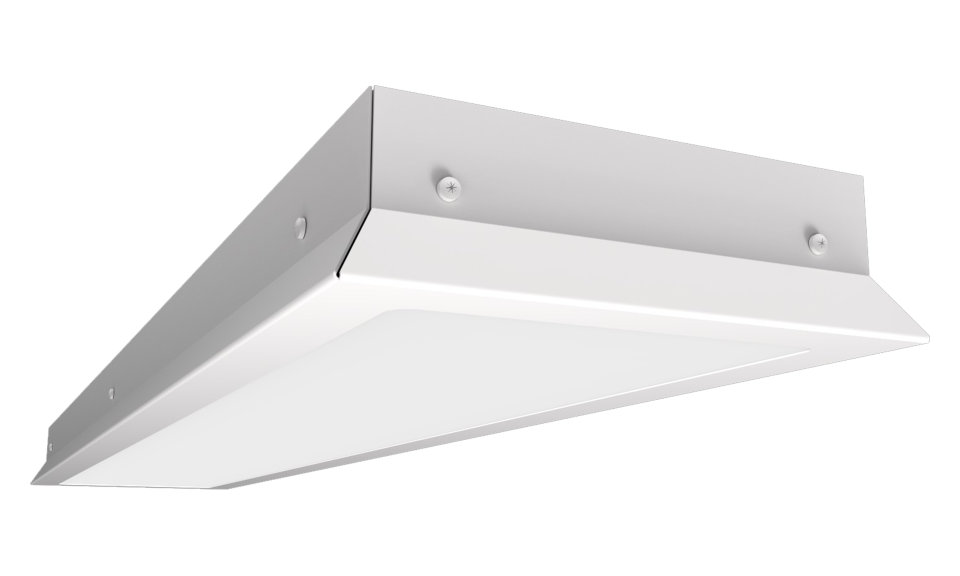

Squash Corso 2 for Front of Court Dimensional Diagram
| L | W | H | |
|---|---|---|---|
| CSS60 | 1230 | 287 | 238 |

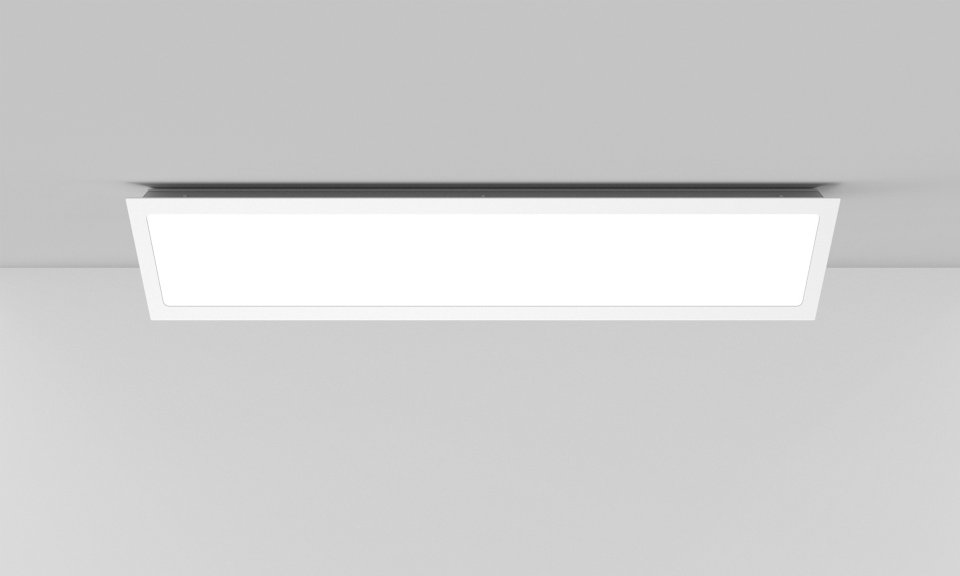

Squash Corso 2 for Back of Court Dimensional Diagram
| L | W | H | |
|---|---|---|---|
| CSSSUR | 1230 | 245 | 75 |
Options and Variations
| Order Code | Description | Light Source | Nom. Power (W) | Nom. Weight (kg) |
|---|---|---|---|---|
| CSS60 | Squash Corso 2 for mounting at front of court | 8143 llm 4000 K LED | 68.04 | 11.6 |
| CSSSUR | Squash Corso 2 for mounting parallel to side walls | 15 271 llm 4000 K LED | 128.2 | 7.4 |
